Pressure Sensors

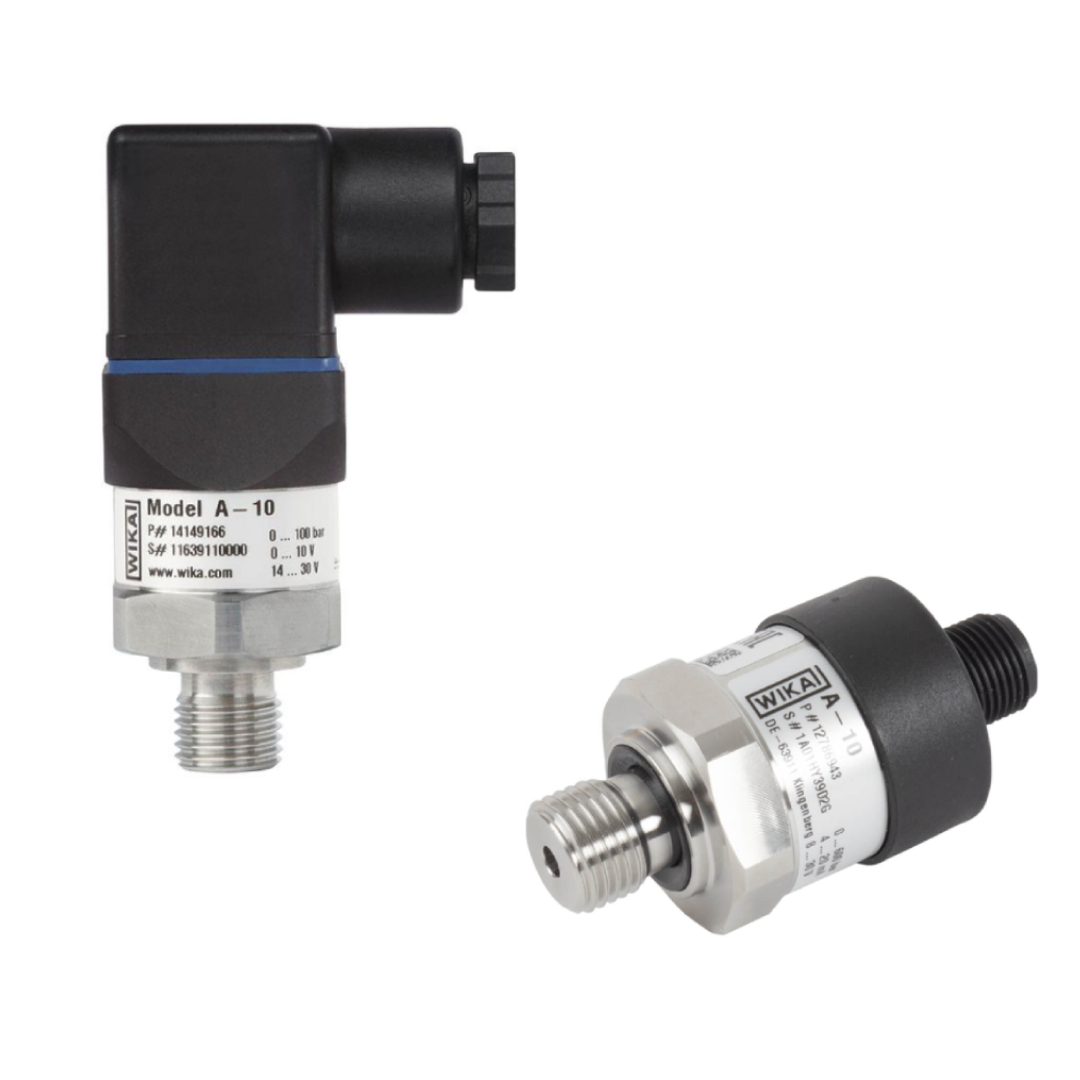

WIKA A-10 Pressure Sensor (General Industrial) – 4-20 mA, 0-10 V, 316L Stainless Steel, IP65–IP69K
WIKA A-10 pressure sensor for general industrial service in Kuwait, with stainless steel wetted parts 316L and compact design. Made in Germany.
Available as gauge, absolute and vacuum/compound versions in wide ranges (0…0.1 bar up to 0…1000 bar). Output options include 4–20 mA (2-wire) and 0–10 V.
Common process connections include 1/4″ NPT, G 1/4 (BSPP) and M20×1.5; electrical connections include DIN EN 175301-803 Form A, M12×1 and Metri-Pack 150. Protection up to IP67 / IP69K depending on configuration.

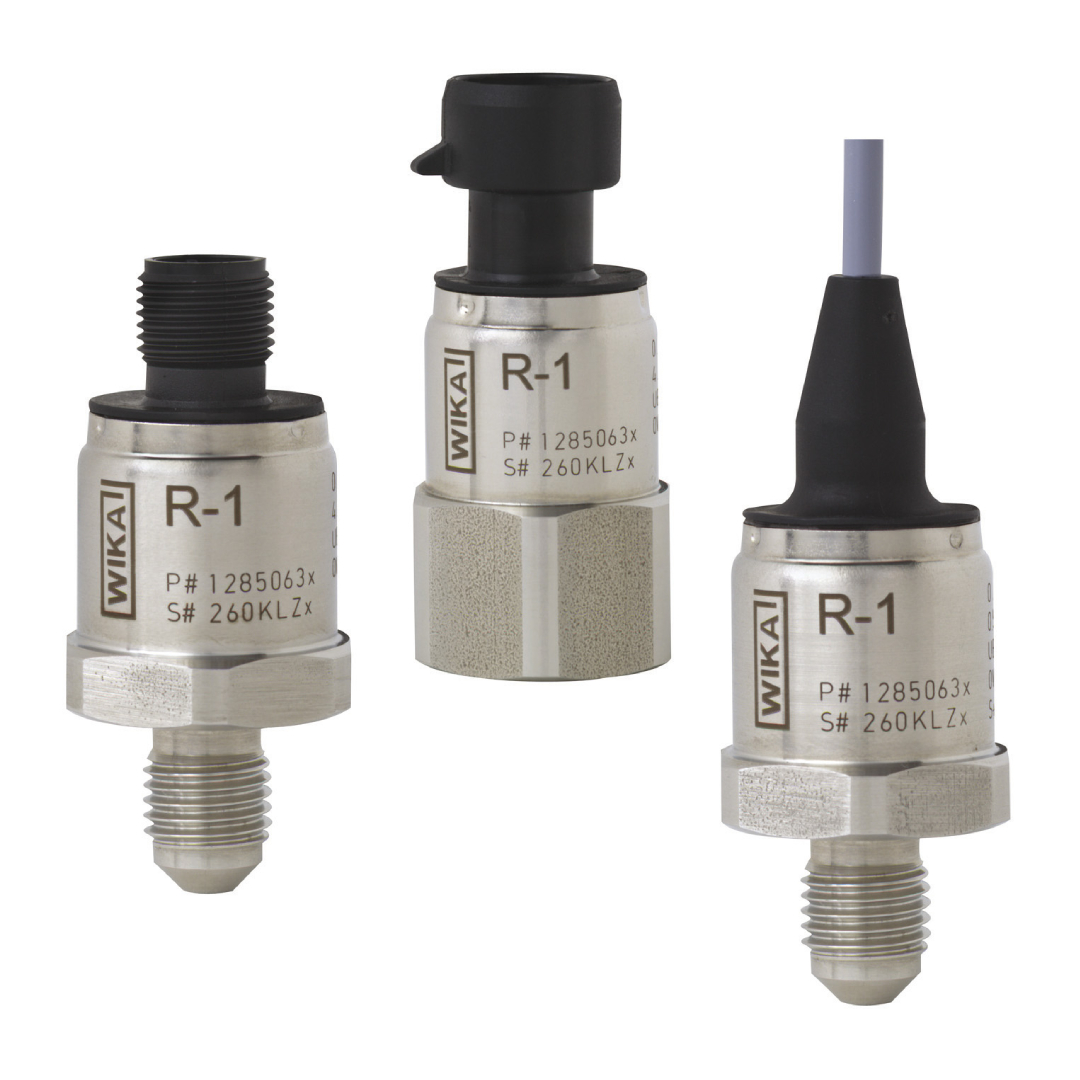

WIKA R-1 Pressure Sensor (Heating & Refrigeration) – 4–20 mA / Switching / Ratiometric, 7–30 VDC, Schrader 7/16-20 UNF, Up To IP69K
WIKA R-1 pressure sensor for heating, refrigeration and A/C service in Kuwait, designed for harsh operating conditions with a durable stainless steel design. Made in Germany.
Available in gauge and vacuum/compound ranges (0…6 to 0…160 bar and -1…+7 to -1…+45 bar). Output options include 4–20 mA (2-wire), switching output and ratiometric (10…90% of supply); supply 7…30 VDC.
Common process connections include Schrader 7/16-20 UNF, 1/4″ NPT and G 1/4; electrical options include flying lead, M12×1 and Metri-Pack 150, with protection up to IP69K depending on version.

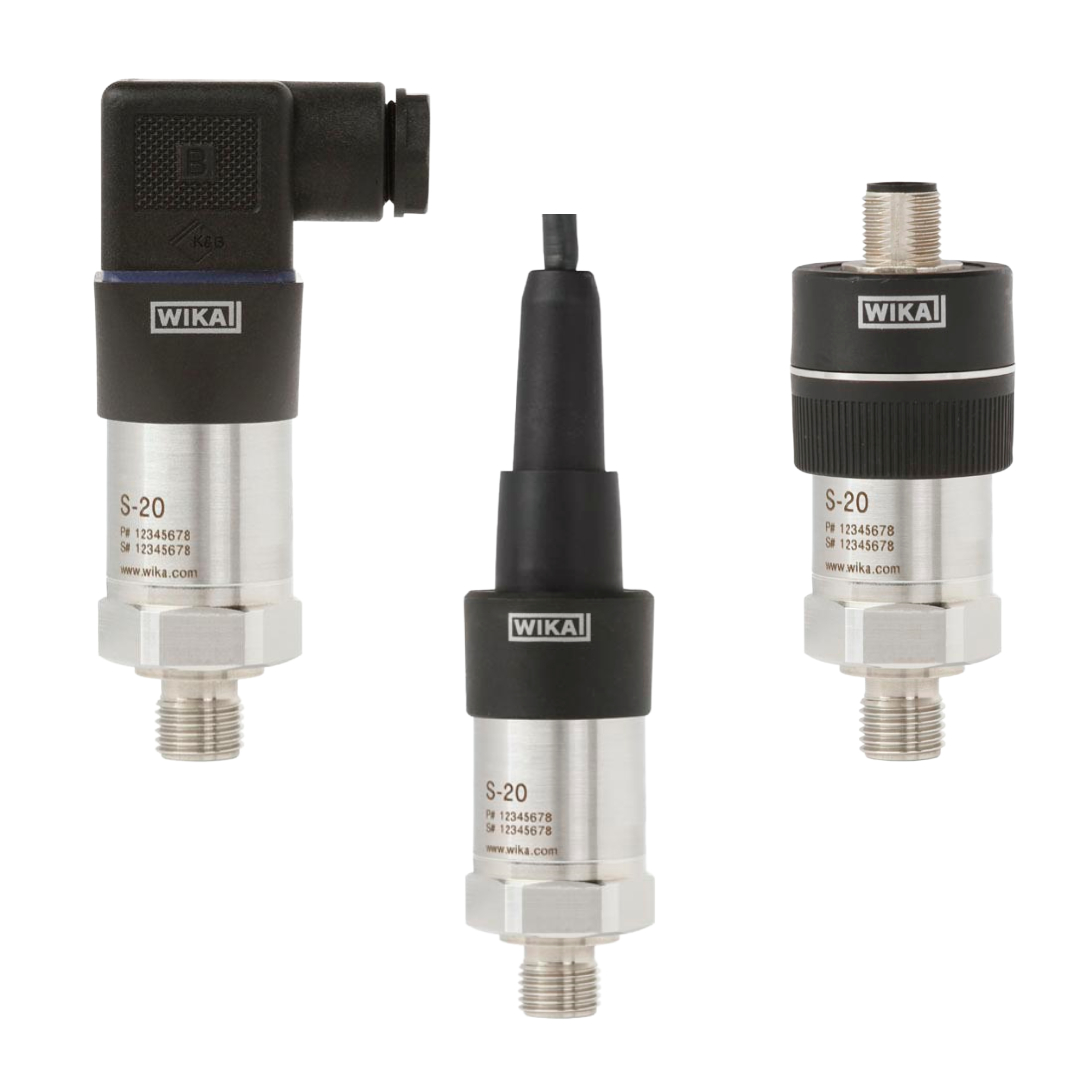

WIKA S-20 Pressure Pressure Sensor (Demanding Industrial) – Up to 0…1,600 bar, 4–20 mA / 0–10 V, 316L Wetted Parts, IP65–IP6K9K
WIKA S-20 pressure sensor for demanding industrial service in Kuwait, built for harsh process environments with robust stainless steel construction and reliable long-term stability.
Available as gauge, absolute and vacuum/compound versions in wide ranges (from 0…0.4 bar up to 0…1,600 bar, plus vacuum/compound ranges). Output options include 4–20 mA (2-wire) and 3-wire voltage signals such as 0–10 V, 0–5 V, 1–5 V and ratiometric 0.5–4.5 V; typical supply 8…36 VDC (depending on output).
Common process connections include G 1/4 (BSPP), 1/4″ NPT and metric options like M20×1.5; electrical connections include DIN EN 175301-803 Form A, M12×1 and cable outlet. Ingress protection up to IP67 / IP68 / IP6K9K depending on configuration.

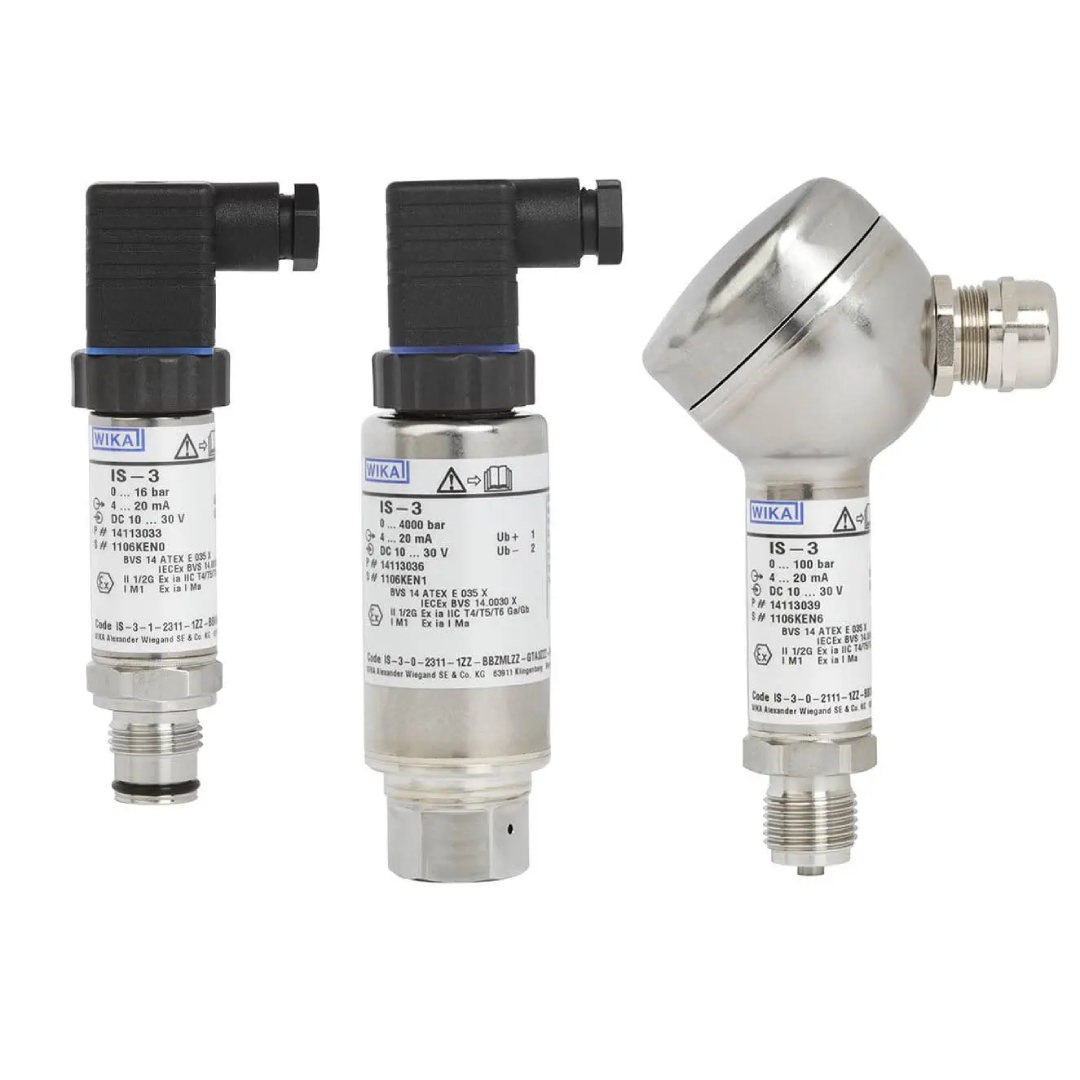

WIKA IS-3 Intrinsically Safe Pressure Sensor (Ex ia) – 4–20 mA, ATEX/IECEx, Up To 6,000 Bar, IP68/IP69K
WIKA IS-3 intrinsically safe pressure sensor (Ex ia) for hazardous areas in Kuwait, for gas and dust zones in chemical/petrochemical, oil & gas, compressors and machine building.
Measuring ranges from 0…0.1 bar up to 0…6,000 bar (87,000 psi), with medium temperatures up to +200 °C. 2-wire 4–20 mA output, supply 10…30 VDC, accuracy up to 0.5% span.
Common process connection G 1/2 B (EN 837); electrical options DIN EN 175301-803 Form A (PG9), M12×1 or cable. Approvals include ATEX/IECEx (FM/CSA optional) and protection up to IP68/IP69K depending on version.

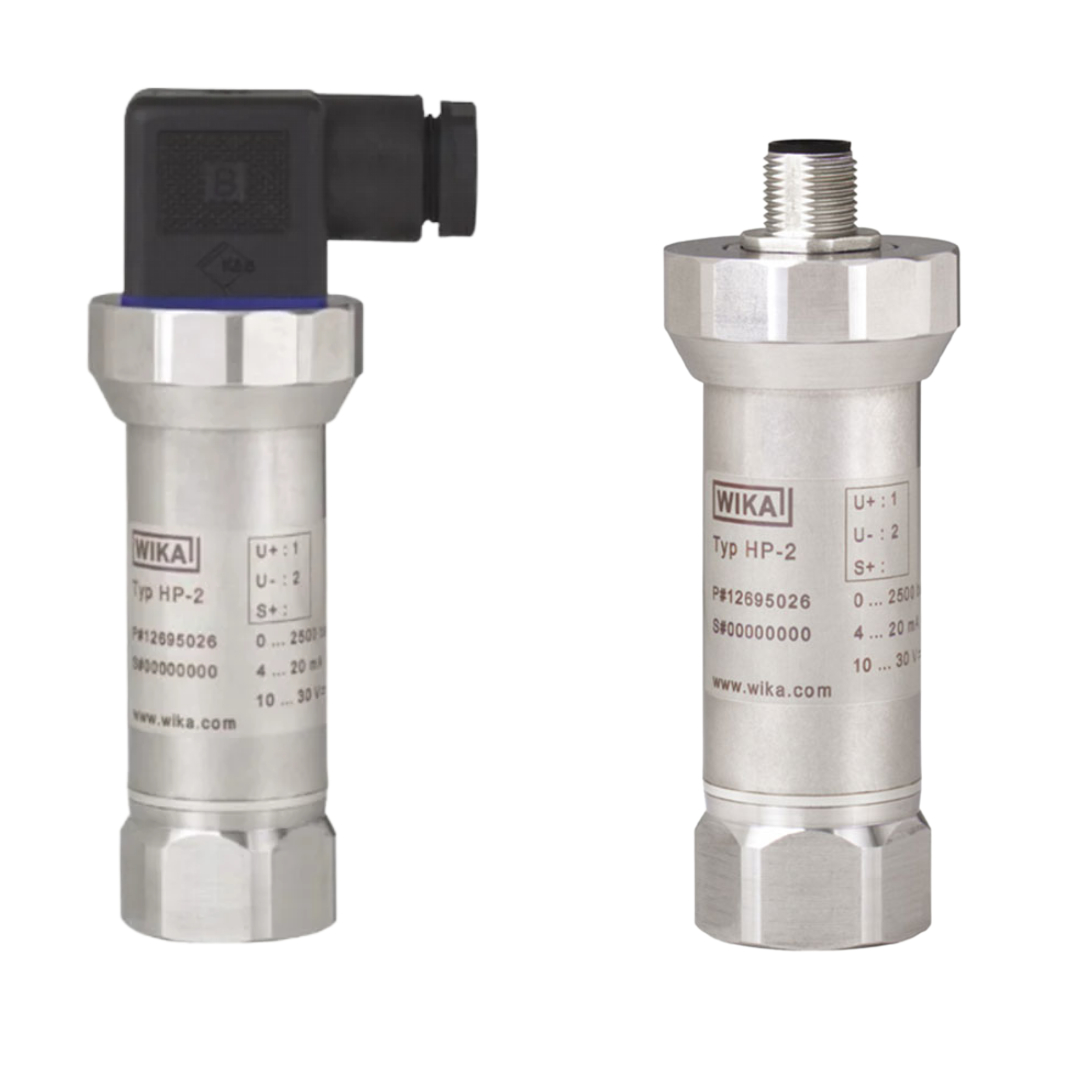

WIKA HP-2 Ultra High-Pressure Sensor – up to 15,000 bar (217,500 psi), 4–20 mA / 0–10 V, M16/M20 Sealing Cone, Stainless Steel
WIKA HP-2 high-pressure sensor for extreme-duty service in Kuwait (test benches, water-jet cutting and high-pressure cleaning), rated up to 15,000 bar (217,500 psi) with stainless steel construction and long-term stability for dynamic pressure profiles.
Outputs include 4–20 mA (2-wire) and 0–10 V (3-wire); supply 10…30 VDC, accuracy ±0.5%. Common process connections are M16×1.5 and M20×1.5 female with sealing cone, plus 9/16-18 UNF female; electrical options include DIN EN 175301-803 L-plug (IP65) and M12×1 connector, with optional wetted material upgrade (Elgiloy) depending on version.

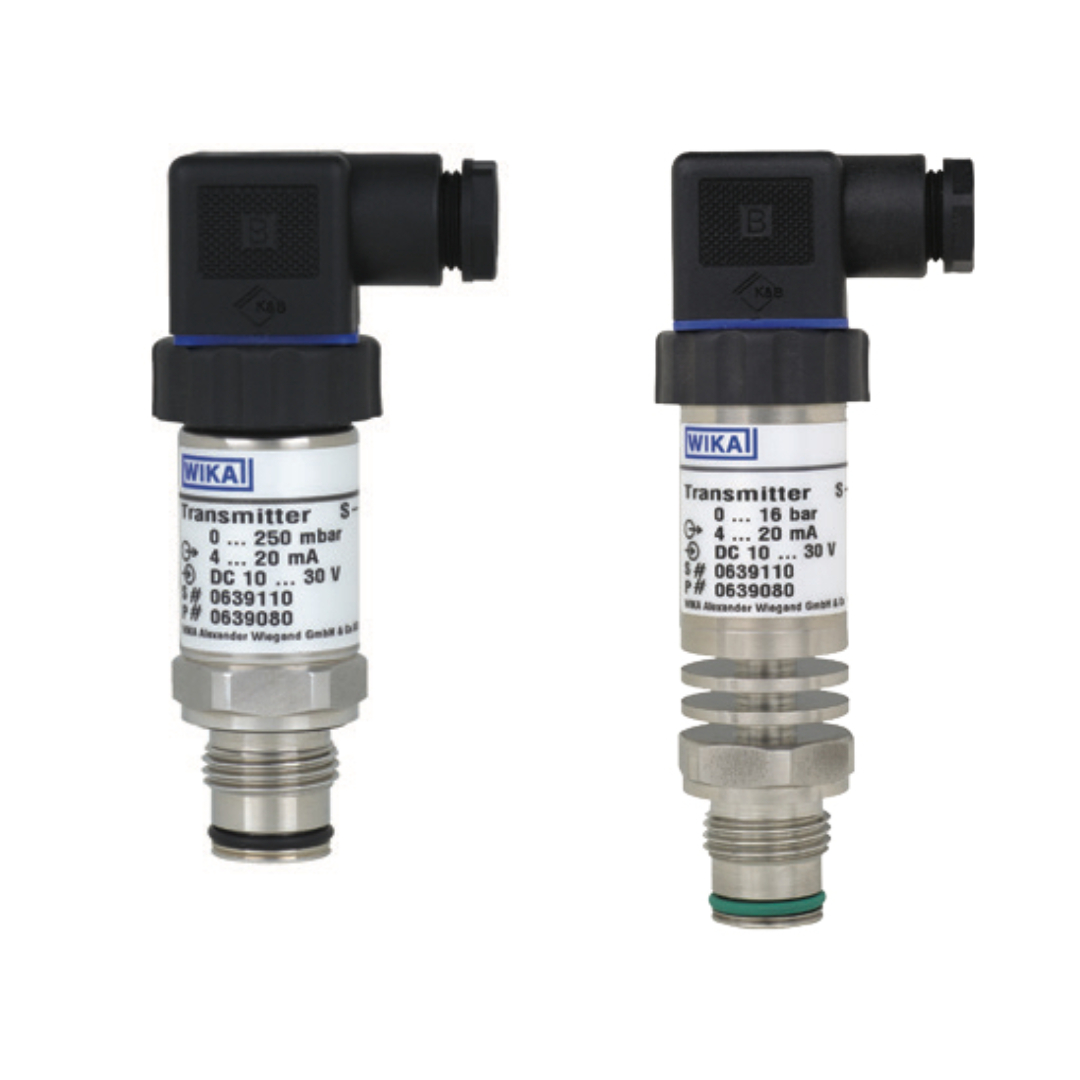

WIKA S-11 Flush Pressure Transmitter – 4–20 mA / 0–10 V, 316Ti/316L, IP65–IP68, Hygienic 3-A option
WIKA S-11 flush pressure transmitter for viscous, paste-like and particle-laden media in Kuwait, with fully welded stainless-steel flush process connection for easy cleaning and dead-space-free sealing.
Gauge ranges 0…0.1 to 0…600 bar; absolute 0…0.25 to 0…16 bar; vacuum/compound up to -1…+24 bar (vacuum-tight). Output options include 4–20 mA (2-wire), 0–20 mA (3-wire), 0–10 V or 0–5 V; supply 10…30 VDC (0–10 V: 14…30 V). Electrical options: DIN 175301-803 A (IP65), M12×1 (IP67) or cable outlet IP67/IP68; optional cooling element for media up to 150 °C and hygienic 3-A / FDA fill-fluid option.
WIKA MG-1 Pressure Sensor (Medical Gases / Oxygen Service) – 4–20 mA / 0–10 V / 0–5 V / 1–5 V / 0.5–4.5 V, IP67, Oxygen Clean
WIKA MG-1 pressure sensor for medical gases and oxygen applications in Kuwait, produced under controlled conditions and marked/packed for oxygen service. Measuring ranges from 0…6 / 0…10 / 0…16 bar and 0…200 / 0…300 / 0…400 bar (vacuum and ± ranges also available), with oxygen-clean options per international standards.
Output signals include 4–20 mA (2-wire) and 3-wire voltage (DC 0–10 V, 0–5 V, 1–5 V) plus DC 0.5–4.5 V ratiometric; supply depends on signal (4–20 mA: DC 8–30 V, 0–10 V: DC 14–30 V, ratiometric: DC 5 ±0.5 V).
Stainless steel 316L case with 316L/13-8 PH wetted parts (FKM seal where applicable), ingress protection IP67, temperature range -20…+70 °C. Common process connections include G 1/8 B, G 1/4 B, G 1/4 A, 1/8″ NPT, 1/4″ NPT, R 1/4, 1/4 PT, and 7/16-20 UNF O-ring boss; electrical connections include M12×1 or 2 m cable outlet.

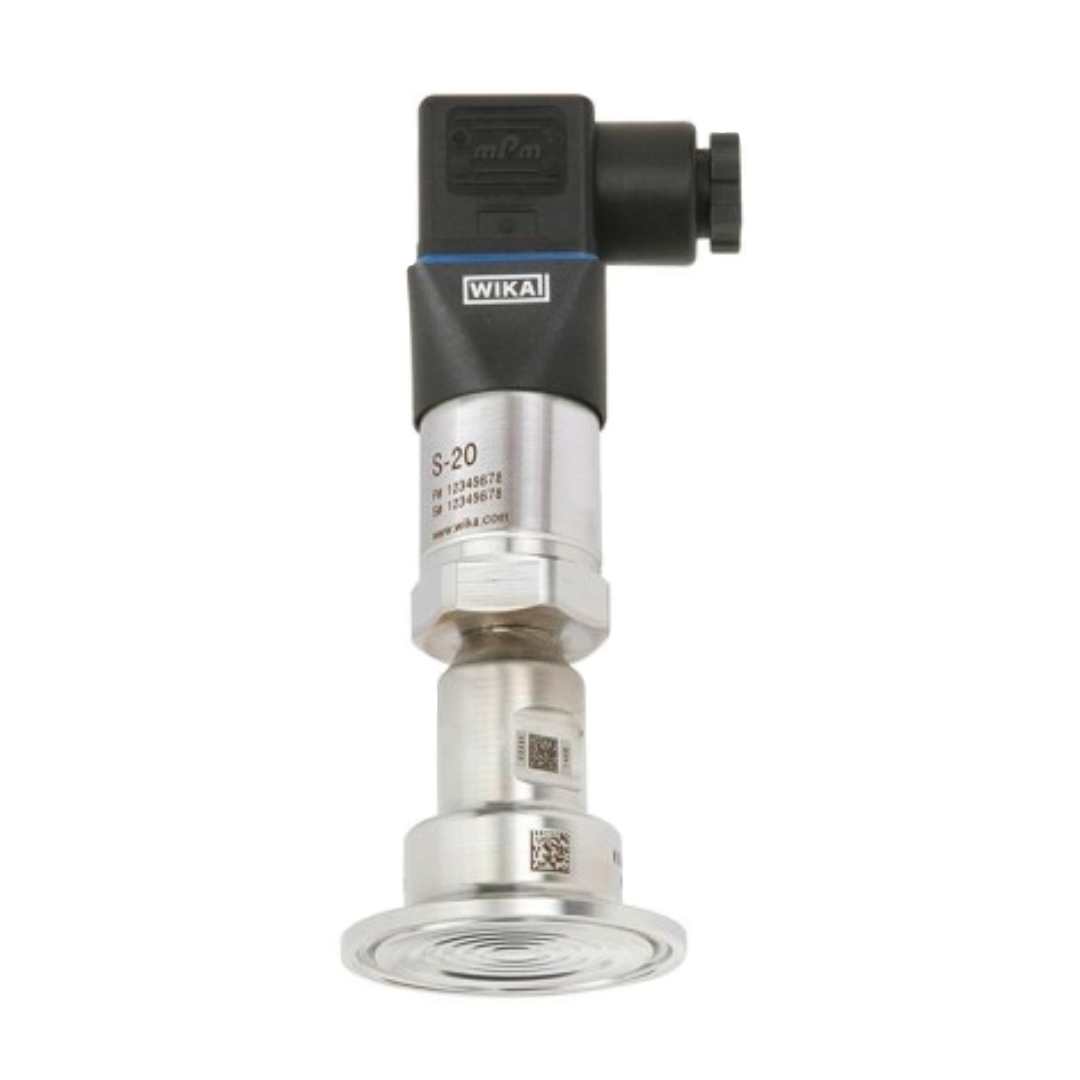

WIKA DSS22T Pressure Sensor with Diaphragm Seal (Hygienic / Sanitary) – Up to 0…25 bar, 4–20 mA, Clamp Connection per DIN 32676, 316L Wetted / 316Ti Case, IP65, EHEDG
WIKA DSS22T pressure sensor with mounted diaphragm seal for hygienic and sanitary service in Kuwait, built for the food and beverage industry and for aggressive, adhesive, crystallising or highly viscous media. Its all-welded stainless steel construction and easy-open clamp connection allow quick, residue-free cleaning and are suitable for CIP and SIP. Made in Germany.
Available in gauge and vacuum/compound ranges (0…1 up to 0…25 bar, and –1…+5 to –1…+10 bar). Output is 4–20 mA (2-wire) with accuracy up to ≤ ±0.5 % of span; supply DC 8…35 V.
Common process connection is a hygienic clamp per DIN 32676 (1½” and 2″ / DN 32 and DN 40; also available per BS4825); electrical connection is an angular connector DIN 175301-803 A. Wetted parts are 316L stainless steel with a 316Ti case, an FDA-compliant fill fluid and surface finish Ra ≤ 0.76 µm; EHEDG-compliant hygienic design. Protection up to IP65, with medium temperature up to 130 °C for CIP and SIP.

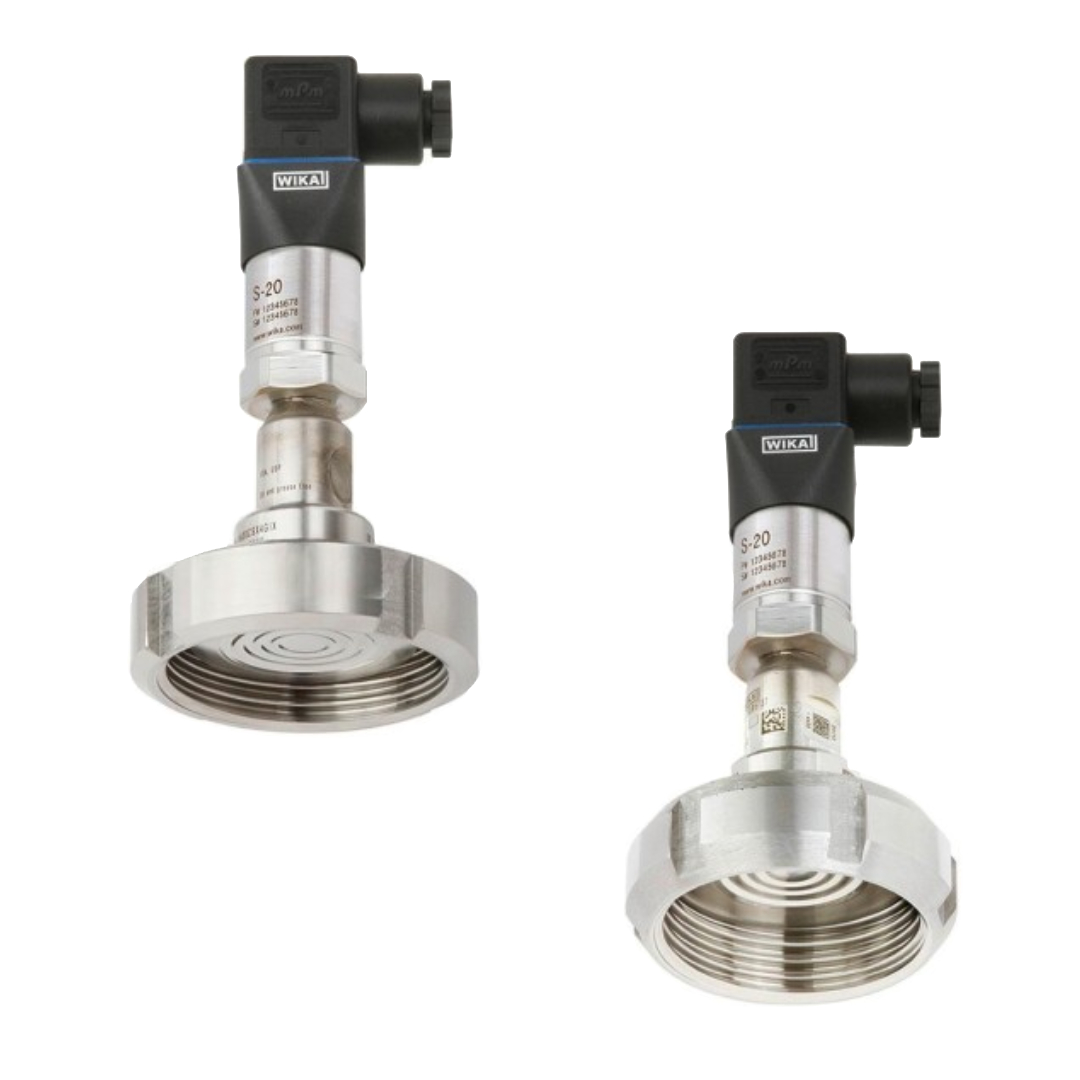

WIKA DSS18T / DSS19T Hygienic Pressure Sensor with Diaphragm Seal – Up to 0…25 bar, 4–20 mA, Milk Thread (DIN 11851) or Svensk Standard SS 1145 Connection, 316L Wetted / 316Ti Case, IP65
WIKA DSS-series pressure sensor with mounted diaphragm seal for hygienic and sanitary service in Kuwait, built for the food and beverage industry – including dairies, breweries and soft-drink production – and for aggressive, adhesive, crystallising or highly viscous media. The all-welded stainless steel construction allows quick, residue-free cleaning, is suitable for cleaning out of place (COP), and withstands Sterilisation-in-Place (SIP) up to 130 °C for use in process steps such as filtration, separation, pasteurisation and filling. Made in Germany.
Available in gauge and vacuum/compound ranges (0…1 up to 0…25 bar, and –1…+5 to –1…+10 bar), with 4–20 mA (2-wire) output, accuracy up to ≤ ±0.5 % of span and supply DC 8…35 V. Wetted parts are 316L stainless steel with a 316Ti case, FDA-compliant fill fluid and Ra ≤ 0.76 µm surface finish; electrical connection is an angular connector DIN 175301-803 A, protection up to IP65.
Two connection versions are available: the DSS18T with a milk thread fitting per DIN 11851 (DN 25 / 40 / 50) and EHEDG-certified hygienic design, and the DSS19T with a threaded connection per Svensk Standard SS 1145 (1½” and 2″).

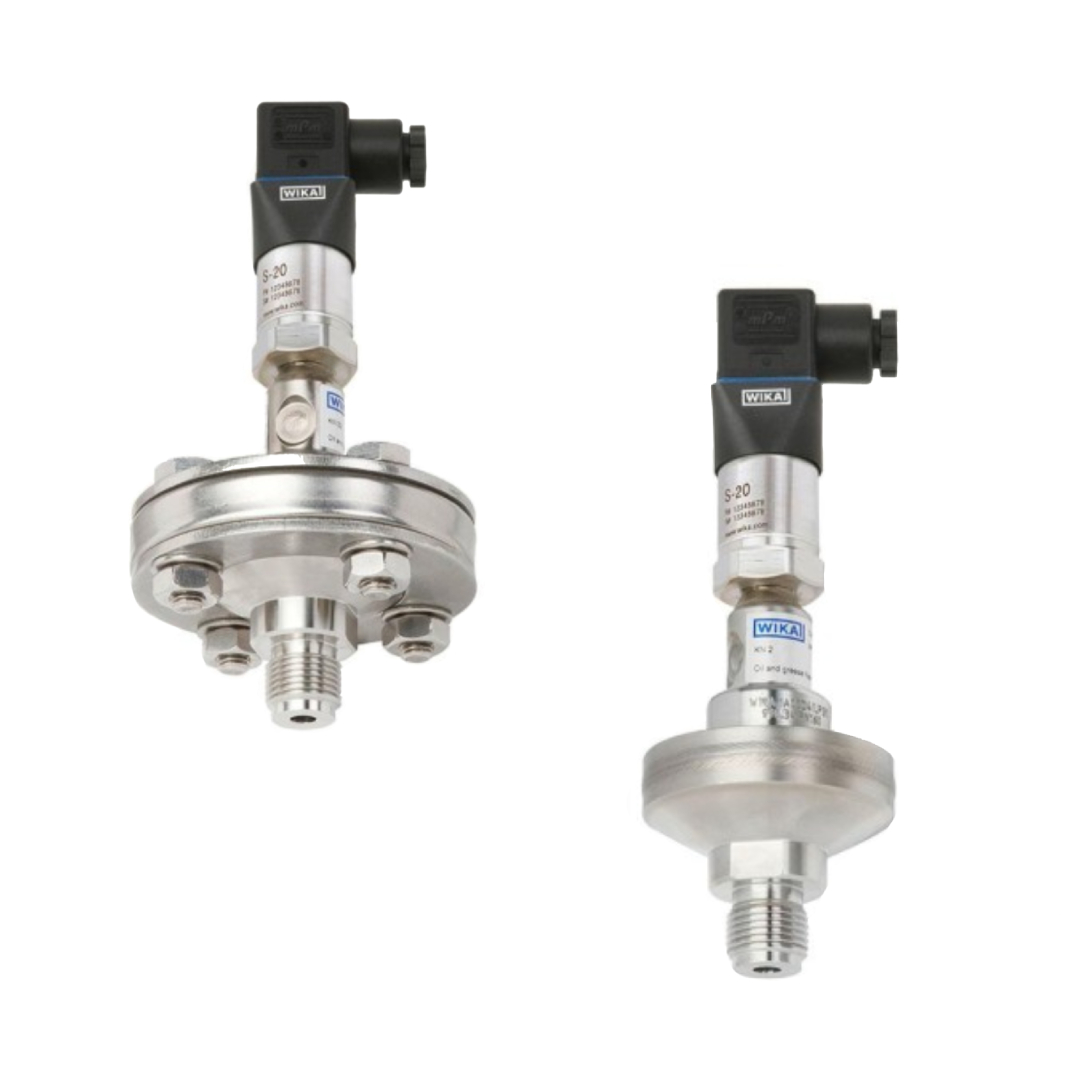

WIKA DSS10T / DSS34T Pressure Sensor with Diaphragm Seal (Chemical & Process Industry) – Up to 0…60 bar, 4–20 mA, Threaded Connection G½ / ½ NPT, 316L or Hastelloy C276 Diaphragm, 316Ti Case, IP65
WIKA DSS-series pressure sensor with mounted diaphragm seal for aggressive, hot, corrosive, contaminated, environmentally hazardous or toxic media in Kuwait, designed for the chemical and petrochemical industries, water treatment and harsh process-industry environments. The robust threaded design uses an internal diaphragm for direct threaded mounting, delivering high accuracy across a wide range of demanding measuring tasks. Made in Germany.
Available in gauge and vacuum/compound ranges (0…1 up to 0…60 bar, and –1…+5 to –1…+10 bar). Output is 4–20 mA (2-wire) with accuracy up to ≤ ±0.5 % of span; supply DC 8…35 V.
Process connection is a direct thread, G½ or ½ NPT; electrical connection is an angular connector DIN 175301-803 A. Wetted parts are 316L stainless steel – or Hastelloy C276 for more aggressive media – with a 316Ti case and silicone-oil fill fluid. Protection IP65, with medium temperature from –10 to 150 °C for hot-media service.
Two construction versions are available: the DSS10T with a screwed-together (modular) design, allowing the lower body to be replaced – for example when changing the process connection – without modifying the diaphragm-seal system; and the DSS34T with an all-welded design for maximum robustness and a permanent seal.

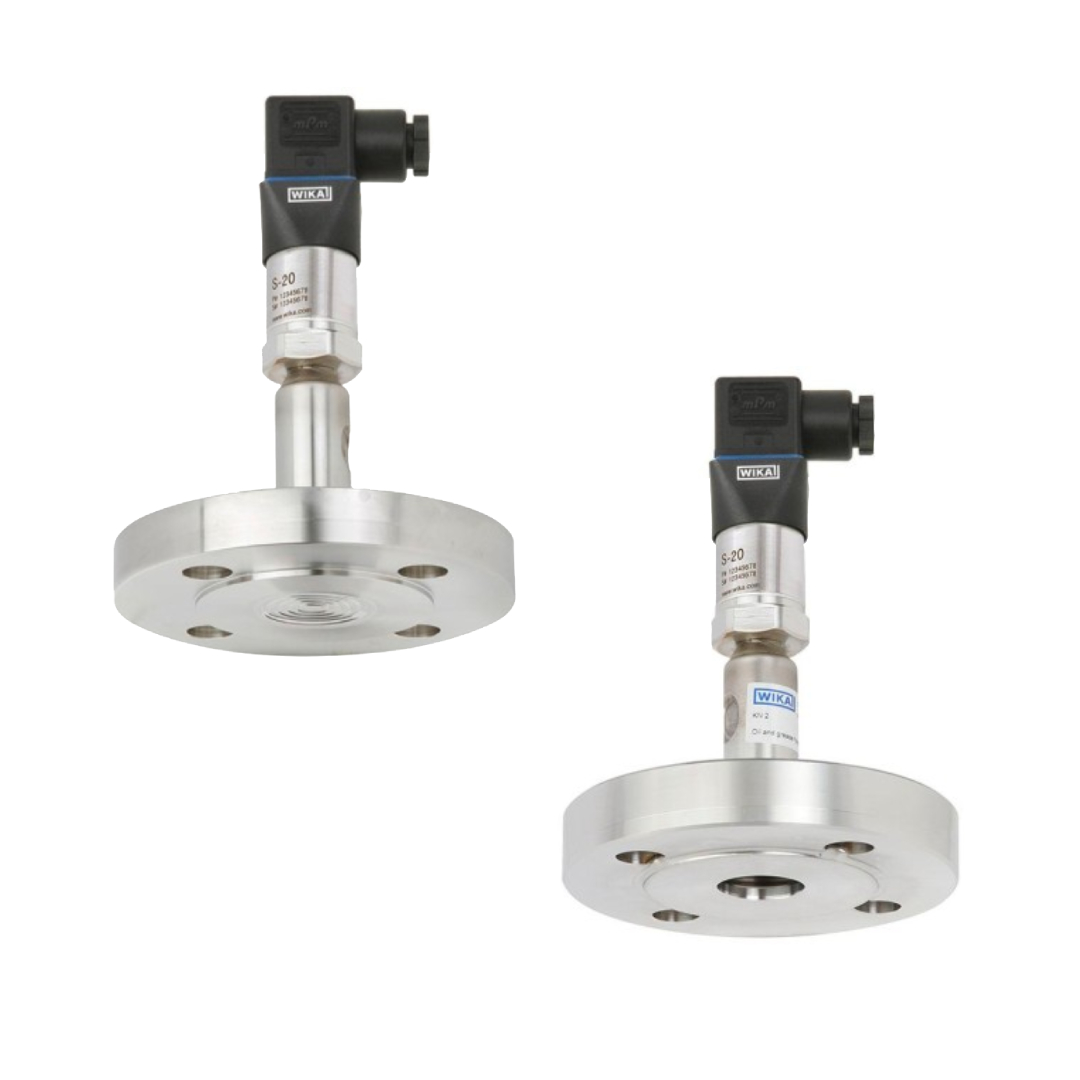

WIKA DSS26T / DSS27T Pressure Sensor with Diaphragm Seal (Chemical & Process Industry) – Up to 0…40 bar, 4–20 mA, Flange Connection per EN 1092-1 / ASME B16.5, 316L Wetted / 316Ti Case, IP65
WIKA DSS-series pressure sensor with flange-mounted diaphragm seal for aggressive, highly viscous, crystallising or hot media in Kuwait, designed for the chemical and petrochemical industries, process plants, and machine building and plant construction. Its robust, all-welded flange design with no separate sealings or clamping elements gives a reliable, low-maintenance connection to standard process flanges while delivering high accuracy on demanding measuring tasks. Made in Germany.
Available in gauge and vacuum/compound ranges (0…1 up to 0…40 bar, and –1…+5 to –1…+10 bar, depending on version). Output is 4–20 mA (2-wire) with accuracy up to ≤ ±0.5 % of span; supply DC 8…35 V.
Process connection is a flange per EN 1092-1 (Form B1) or ASME B16.5 (raised face), covering DN 25 to DN 80 / ½” to 3″; electrical connection is an angular connector DIN 175301-803 A. Wetted parts are 316L stainless steel with a 316Ti case and silicone-oil fill fluid. Protection IP65, with medium temperature from –10 to 150 °C for hot-media service.
Two diaphragm versions are available: the DSS26T with an internal (recessed) diaphragm for small flange connections (DN 25 / ½” / 1″, ranges 0…6 to 0…25 bar) in a compact build; and the DSS27T with a flush-welded diaphragm that sits level with the flange face — ideal for highly viscous, crystallising or solids-laden media that would clog a recessed diaphragm — in larger flange sizes (DN 50 / 80, 2″ / 3″) with ranges up to 0…40 bar.
Differential Pressure Sensor

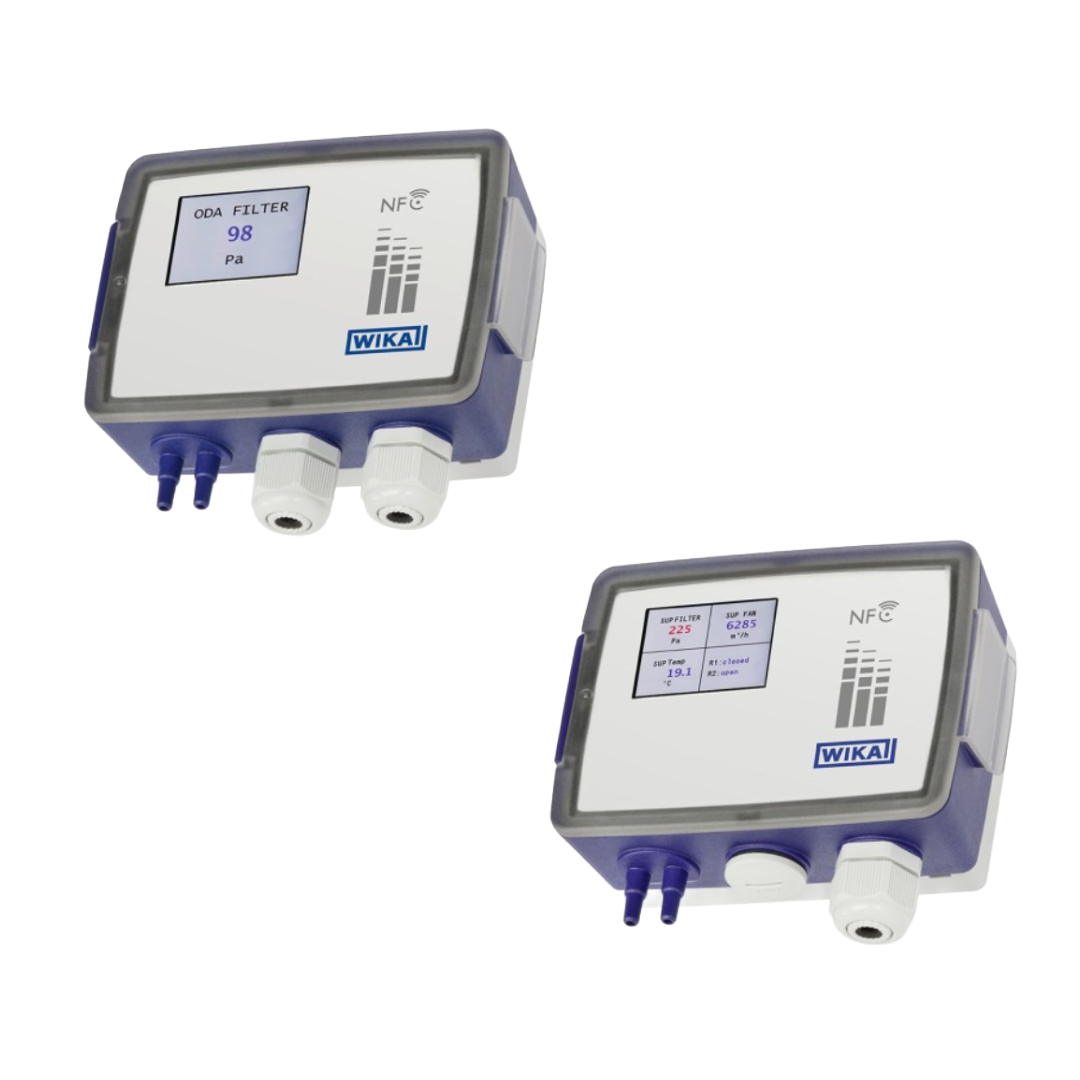

WIKA A2G-500 / A2G-520 Differential Pressure & Air Flow Sensor for Ventilation & Air-Conditioning (HVAC) – Up to 0…12,000 Pa, 4–20 mA / 0–10 V, Modbus RTU / LoRaWAN, NFC, 2″ TFT Display, IP65
WIKA A2G-500 series differential pressure sensor for ventilation and air-conditioning (HVAC) applications in Kuwait – measuring differential pressure, gauge pressure and vacuum in air and other non-aggressive, non-flammable gases. Its temperature-compensated piezoresistive measuring cell captures even the smallest pressure differences with high long-term stability, making it ideal for monitoring filters, fans and heat exchangers, and for pressure monitoring in ventilation ducts, laboratories, production areas and clean rooms. Made in Germany.
Freely adjustable measuring ranges from ±25 Pa up to 0…12,000 Pa [0…48 inWC], with 0.50 % FS accuracy. IIoT-ready output options include 0–10 V / 0–5 V / 2–10 V and 4–20 mA (2- or 3-wire), up to two relays, digital Modbus® RTU (RS-485) and wireless LoRaWAN® (868 MHz, range up to ~10 km). A 2″ TFT colour display shows up to four measured values and two relay states with a configurable traffic-light alarm function, and the unit is configured and read via NFC using the WIKA app. Weatherproof IP65 housing with a tool-free snap-on cover; supply 24 V AC/DC. Process connection is two Ø 5 / 7 mm nozzles for 4–6 mm hoses.
Two versions are available: the A2G-500 for pure differential-pressure measurement, monitoring and switching (available with relay outputs as a differential-pressure switch / 2-point controller, and in a battery-powered LoRaWAN® version for cable-free retrofits, with ranges up to 0…12,000 Pa); and the A2G-520 air flow sensor, which adds integrated air-flow calculation – using the K-factor of a connected element such as the A2G-FM pitot tube – with pressure and temperature compensation, giving air flow up to 999,999 m³/h (also l/s, m³/s, cfm) and velocity in m/s or fpm, over ranges up to 0…7,000 Pa.

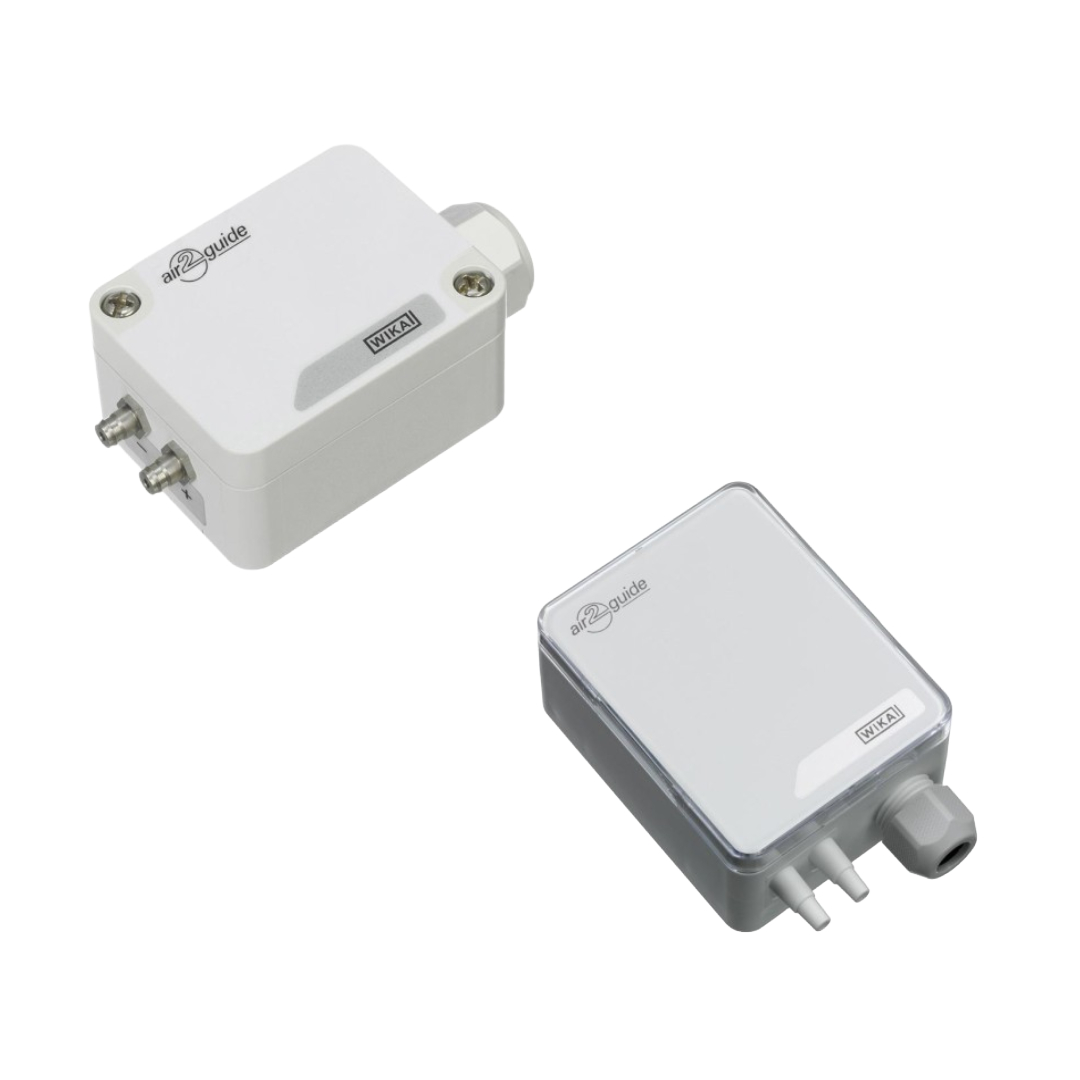

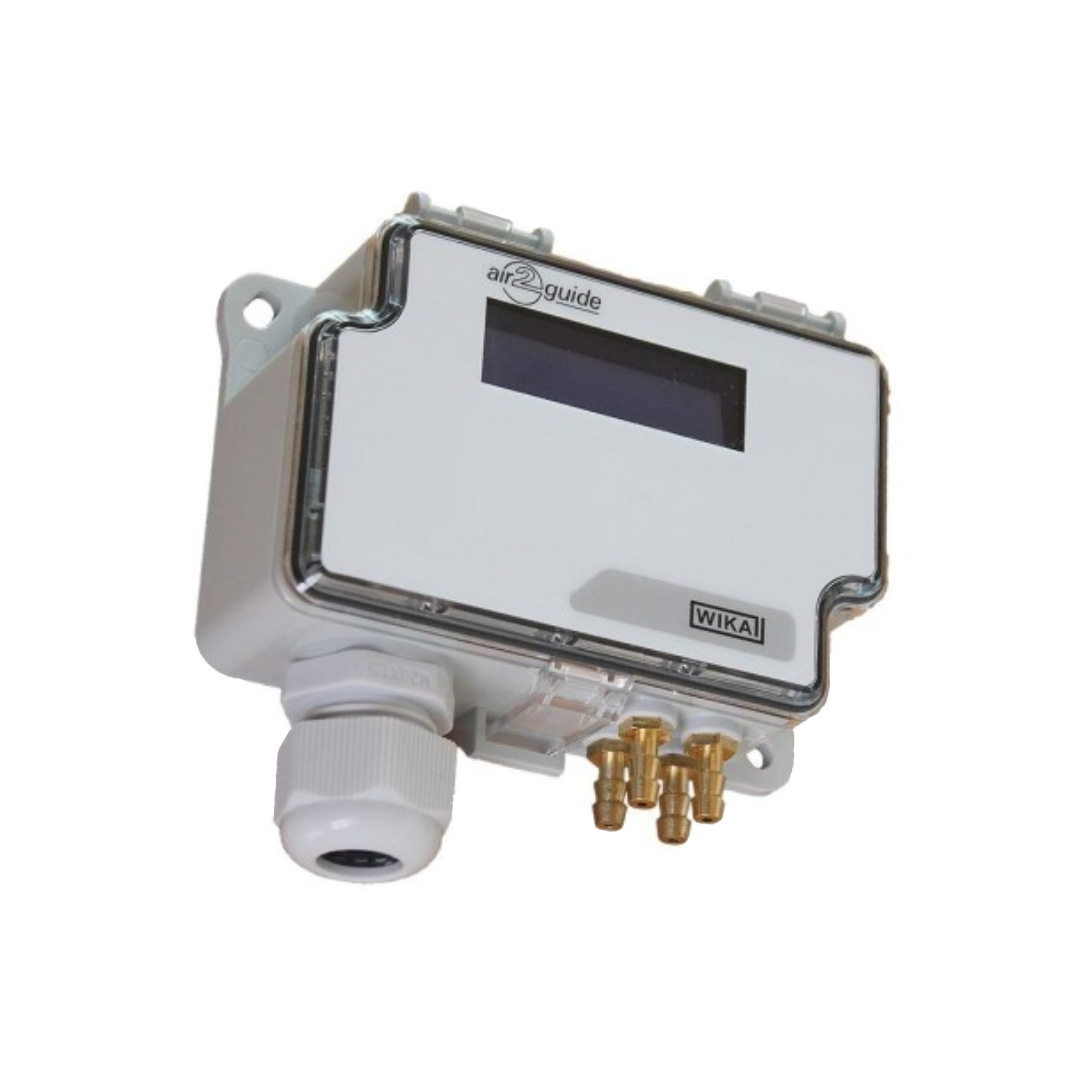

WIKA A2G-50 / A2G-55 Differential Pressure Sensor for Ventilation & Air-Conditioning (HVAC) – Up to 0…12,000 Pa, 0–10 V / 4–20 mA, Optional Modbus & LC Display, Compact air2guide
WIKA air2guide differential pressure sensor for ventilation and air-conditioning (HVAC) applications in Kuwait, used to measure differential and static pressures of air and non-aggressive gases – ideal for filter monitoring and overpressure monitoring in clean rooms and laboratories.
Based on a compact, maintenance-free piezoresistive measuring cell, it offers reliable performance and high quality at an attractive price, with simple commissioning and direct connection to control or building-automation systems. Made in Germany.
Analogue output signals of 0–10 V or 4–20 mA connect straight into any BMS. Process connection is two nozzles for 4–6 mm hoses; supply 24 V AC/DC; screw-terminal wiring via an M16 cable gland.
Two versions are available: the A2G-50, the higher-specified unit with field-adjustable measuring ranges (set via jumpers) up to 0…12,000 Pa [0…48 inWC], an optional backlit LC display, optional Modbus® RTU (RS-485) digital output, automatic zero-point setting and higher accuracy (down to 1 % of reading) in an IP54 housing; and the A2G-55 Eco, a lower-cost transmitter with fixed (unchangeable) ranges up to 0…5,000 Pa, 0–10 V or optional 4–20 mA output, ±2.5 % FS accuracy and an IP65 housing suited to outdoor use.
WIKA A2G-52 Dual Differential Pressure Sensor for Ventilation & Air-Conditioning (HVAC) – 2 Measuring Points in One Unit, Up to –250…+7,000 Pa, Modbus RTU, 2× Temperature / Analogue Inputs, LC Display
WIKA A2G-52 dual differential pressure sensor for ventilation and air-conditioning (HVAC) applications in Kuwait, combining two differential-pressure sensors in a single instrument so pressure can be measured at two separate control points at once. It suits air and non-flammable, non-aggressive gases, and is ideal for fan, blower and filter monitoring, pressure and flow monitoring, monitoring and control of valves and air shutters, and pressure monitoring in clean rooms. Made in Germany.
Available in two range versions: –250…+2,500 Pa or –250…+7,000 Pa – using a piezoresistive measuring cell, with units in Pa, mbar, inWC, mmWC or psi. The digital output is Modbus® RTU over RS-485 (9,600–38,400 baud, addresses 1…247), and a two-line LC display shows both pressure readings directly. Two additional inputs accept passive temperature sensors (Pt1000, Ni1000, Ni1000-LG or NTC10k) or a 0–10 V analogue signal, so separate active temperature transmitters aren’t needed – reducing material and wiring costs.
Process connection is two copper-alloy nozzles for 4 mm hoses; supply 24 V AC/DC via an M20 cable gland; ABS housing with PC cover, IP54.
